Blank Coil Drawings & Templates

High-Quality Blank Coil Drawings for HVAC/R Systems

Rahn Industries offers Blank Coil Drawings to meet the diverse needs of the HVAC/R industry. With over 40 years of expertise in manufacturing high-quality HVAC coils and providing protective coatings, we ensure that our templates are accurate, easy to use, and suitable for various coil types. Our Blank Coil Drawings are designed to help professionals save time and ensure precise coil installation.

Why Choose Rahn Industries Blank Coil Drawings?

• Industry Expertise: Over 40 years of experience in HVAC coil manufacturing.
• Wide Variety of Templates: Suitable for water, steam, DX, and condenser coils.
• Accurate and Easy to Use: Ensures precise coil specifications and configurations.
• Quick Download Options: Downloadable templates to streamline your workflow.

Available Coil Drawing Templates

We provide an extensive range of Blank Coil Drawings templates for various coil types, including:

Water Coil Templates

• Standard Template
• No Manifold Template
• Standard with Drain Pan
• Slip & Drive Template
• Opposite End Connections Template
• A-Frame Template

Steam Coil Templates

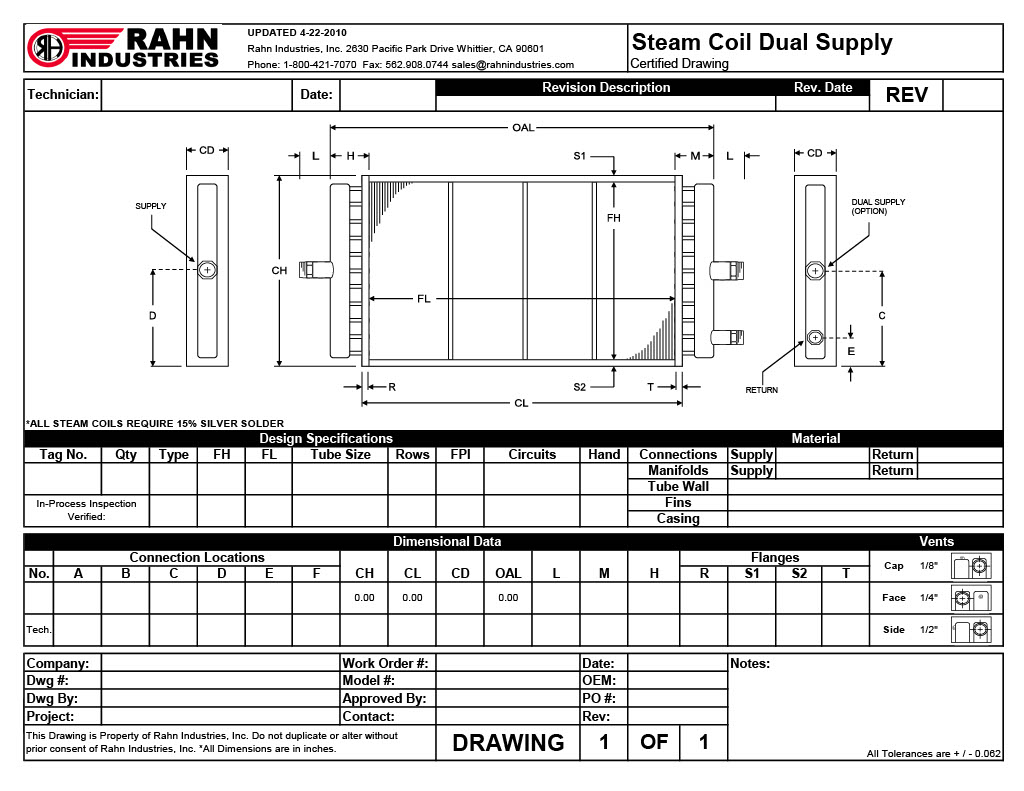

• Horizontal Template
• Dual Supply Template
• Standard Template
• Opposite End Connections Template
• Un-Pitched Casing Template

DX Coil Templates

• Refrigeration Template
• Single No Top/Bottom Flange Template
• Face Control Template
• A-Frame Single System Template
• Split Face Interlaced Template
• Single In-Line Template

Condenser Coil Templates

• U-Shape Template
• Standard Template
• No Manifold Template
• L-Shape Template
• G Square Shape Template

Case Coil Template

• Standard Case Coil Template

Download Blank Coil Drawings with Ease

Our downloadable Blank Coil Drawings ensure you have the exact coil specifications you need for your HVAC projects. These templates provide accurate configurations, helping HVAC professionals maintain efficiency and accuracy in their coil installations.

Trusted by Industry Leaders

Rahn Industries has built a reputation for delivering high-quality coils and protective coatings to over 1,500 clients, ranging from small installers to some of the largest companies worldwide. We specialize in manufacturing OEM replacement coils for leading brands like Trane, Lennox, Carrier, York, and Aaon, and we offer custom coil solutions to meet any project requirement.
